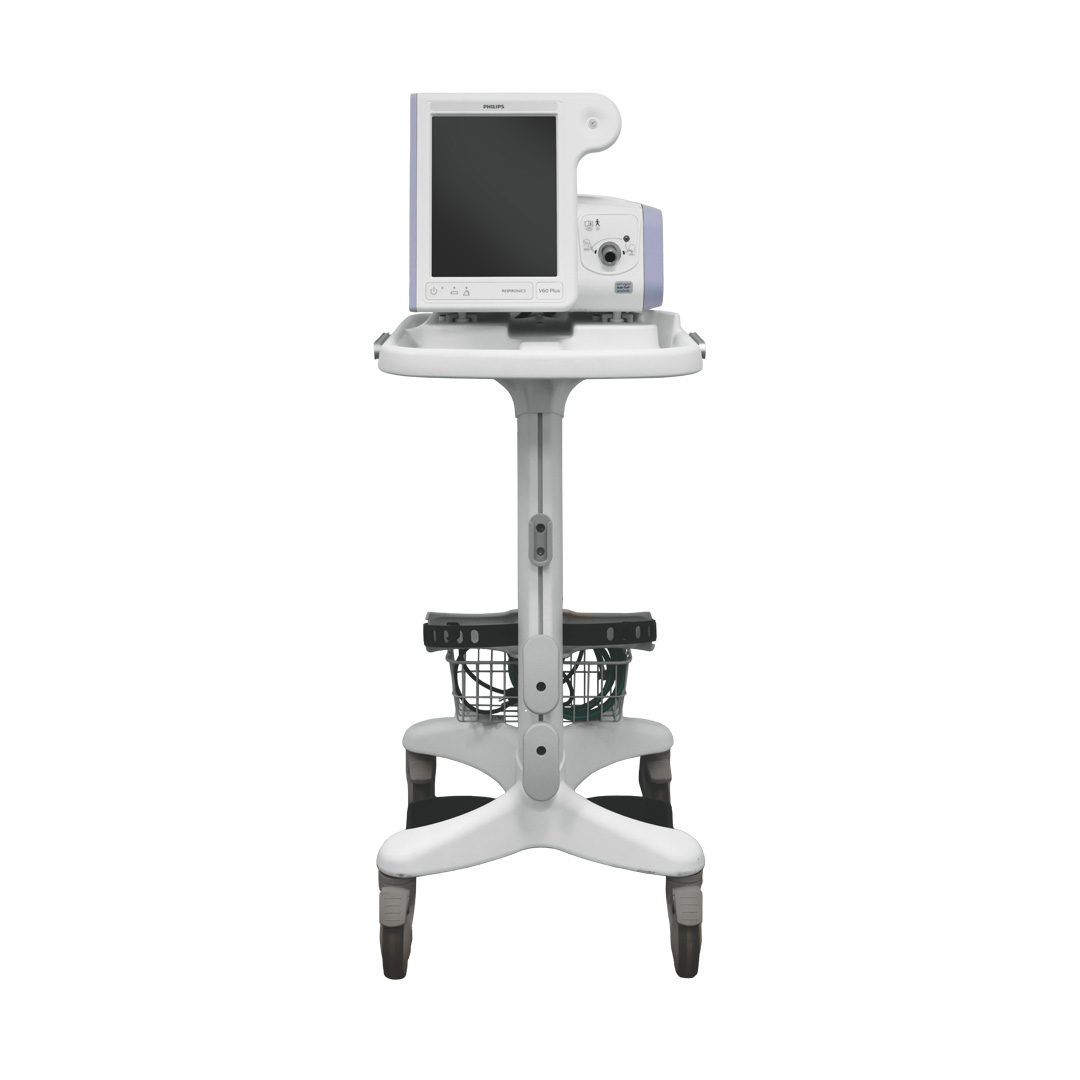

Philips V60 Plus Ventilator Features
The Philips Respironics V60 Plus is a Ventilator that runs on a microprocessor with bi-level, positive air ventilation that can be either non-invasive or invasive for spontaneous breathing. The V60 Plus can offer two different ventilation therapy options in one machine, Non-Invasive (NIV) and High Flow Therapy (HFT). Additionally, the V60 Plus offers AVAP to monitor the tidal volume in a pressure-limited mode, PCV when a Patient has reduced lung capacity and can’t breathe fully on their own, and CPAP which can provide continuous pressure throughout the respiratory cycle.
The Philips V60 Plus can offer ventilation to both pediatric and adult patients. The ventilator comes with the Philips auto-tracking technology allowing for adjustments to be made to the therapy needed for the patient without having to switch machines. The system comes with a touchscreen display making it easy to use and view the different parameters on a large color screen. With a 6-hour battery life, the V60 plus can be used as an intra-hospital transport ventilator. Another Ventilator by Philips is the Philips Respironics V60.
- High-resolution graphics facilitating waveform interpretation.
- Internal 6-hour battery enables intra-hospital transport (actual battery time will vary depending on user settings and battery charge level). Standby mode supports patient-clinician interaction without nuisance alarms.
- Data communication capabilities support hospital connectivity.
- Respi-Link, a remote communication tool, allows efficient system diagnostics and upgrades via the internet.
- AVAPS maintains a target tidal volume in a pressure-limited mode. It provides extra assurance similar to a volume-limited mode with the safety of a pressure-limited mode.
- CPAP with C-Flex offers three levels of flow-based expiratory pressure relief. This option leads to improved sleep quality and patient comfort, adding greater flexibility and improved treatment acceptance.
- PCV can be used when greater control of the patient’s breathing pattern is required. Additionally, the option of ventilating a patient invasively gives the caregiver greater flexibility in the approach to treatment.
- Treatment for a wide range of clinical severities and patients from pediatric to adult.
- Flexibility for intra-hospital transport with an internal 6-hour smart battery.
Philips V60 Plus Specifications
Dimensions
- Height: 13.3 in (33.7 cm)
- Width: 15.5 in (39.4 cm)
- Depth: 16.5 in (42.9 c)
- Weight: 10.9 kg ( 24 lbs) with Battery
- Weight: 10 kg (22 lbs) without Battery
Patient Types
- Adult
- Pediatric (Less than or equal to 20 kg)
Battery
- 14.4V, 10.0 Ah, 163 Wh
- Maximum system current draw: 11 A
- Charge Voltage: 16.9 V Maximum
- Operating Time: 360 minutes under normal conditions
Modes
- Continuous positive airway pressure (CPAP)
- Spontaneous with timed backup (S/T)
- Pressure control ventilation (PCV)
- Average volume assured pressure support (AVAPS) —optional
Settings
- C-Flex OFF, 1–3
- CPAP 4–25 cmH2O
- EPAP 4–25 cmH2O
- IPAP 4–40 cmH2O
- I-time (inspiratory time) 0.30–3.00 sec
- Max P (AVAPS maximum IPAP) 6–40 cmH2O
- Min P (AVAPS minimum IPAP) 5–30 cmH2O
- O2 (oxygen percent) 21–100%
- Ramp time OFF, 5–45 min
- Rate (respiratory rate) 4–60 BPM
- Rise (rise time) 1–5
- Triggering and cycling Auto-adaptive (Auto-Trak)
- AVAPS target tidal volume 200–2000 ml
Monitored Parameters
- Breath Phase / Trigger Indicator Spont, Timed, Exhale
- PIP 0–50 cmH2O
- Patient / Total Leak 0-200 l/min BTPS
- Patient trigger 0–100%
- Respiratory rate 0–90 BPM
- Ti/Ttot 0–91%
- Minute volume ² O PLQ%736
- Tidal volume 0–3000 ml BTPS
General
- Oxygen inlet pressure range 276–600 kPa (40–87 psig)
- Weight 10.9 kg (24lb) with optional battery; 10.0 kg (22 lb) without optional battery
- Dimensions 33.7 cm (13.3 in) height; 39.4cm (15.5 in) weight; 42.9 cm (16.5 in) depth
Electrical
- AC voltage 100–240 VAC
- AC frequency 50–60 Hz
- AC power 300 VA
- Battery operating time 6 hours in normal conditions
Environmental Specifications (Operating)
- Temperature: 41 to 104 ºF (5 to 40 ºC)
- Relative Humidity: 15 to 95% (noncondensing)
- Barometric Pressure: 600 to 765 mmHg (approximately -61 to 1951 m (-200 to 6400 ft) relative to sea level)
Environmental Specifications (Storage)
- Temperature: -4 to 122 ºF (-20 to 50 ºC)
- Relative Humidity: 10 to 95% relative (noncondensing)
- Barometric Pressure: 600 to 765 mmHg (approximately -61 to 1951 m (-200 to 6400 ft) relative to sea level)
High-pressure Oxygen Supply
- Connector: DISS male, DISS female, NIST
- Pressure: 2.76 to 6.00 bar / 276 to 600 kPa / 40 to 87 psig
- Flow: 175 SLPM
- Connector: SIS
- Pressure: 3.31 to 6.00 bar / 331 to 600 kPa / 48 to 87 psig
- Flow: 175 SLPM
High-pressure Oxygen Supply (Using V60 manifold)
- Connector: DISS male, DISS female, NIST
- Pressure: 3.10 to 6.00 bar / 310 to 600 kPa / 45 to 87 psig
- Flow: 175 SLPM
- Connector: SIS
- Pressure: 3.66 to 6.00 bar / 366 to 600 kPa / 53 to 87 psig
- Flow: 175 SLPM
Inspiratory Outlet (To patient port)
- Connector: ISO 15 mm female/22 mm male conical
Air Supply
- Integrated blower
Flows and Pressures
- Flow Delivery: 150 L/min at 40 cmH2O at 1951 m (6400 ft) altitude (10% degradation in flow at 2286 m (7500 ft))
- Flow Range: -240 to 240 L/min BTPS
- Pressure Range: 4 to 40 cmH2O
- Dynamic pressure regulation: ± (2 cmH2O + 4% of target)
Refurbished Philips V60 Plus Ventilator Systems
Soma Tech Intl offers the Philips Respironics V60 Pls ventilator up to 50% below OEM prices with the same service and warranty as new. Soma Tech Intl technically and cosmetically refurbishes these V60’s back to the original engineering manufacturer specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the BiPAP V60 Plus are in working order, the ventilator is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Tech Intl not only refurbished the product, but each unit also goes through a Special cosmetic restoration process. The Trilogy ventilator is cleaned and minor scratches and dentures are repaired, and decals are replaced if necessary.
Soma Tech Intl also, purchases used and pre-owned Philips Ventilators. If you or your facility wants to sell your V60 Plus Ventilator, Soma Techn Intl has an experienced purchasing department that makes the process headache and hassle-free. When selling your ventilator system to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma Tech Intl not only buys portable ventilators but also would buy a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to soma, send us a message here!
