Top 10 Requested ICU Covid-19 Related Rental Products

The Stryker Prime Series is designed to reduce physical strain on clinicians, drives hospital efficiency, and ensures patient comfort overall. The Prime Series offers Advanced Stretcher mobility with zoom motorized drive and bigger wheels which eliminates manual pushing. With these Stryker stretchers’ advanced mobility, transporting heavier patients is easier. Patients can also adjust themselves independently with integrated electric functionality. The electric-powered hydraulic pedal eliminates manual pumping which allows for quick patient access and caregiver safety.

• Dimensions:
  • Overall Length: 1105, 1115: 85 in (216 cm)
    • 1125: 86 in (218 cm)
  • Overall Weight:
    • Siderails Up: 34 in (86.4 cm)
    • Siderails Down: 30.25 in (76.8 cm)
  • Height Range:
    • High: 34 in (86.4 cm)
    • Low: (1105, 1115) 20.75 in (53 cm)
    • Low: (1125) 23 in (58 cm)
• Patient Surface: 26 x 75.25 in (66 x 191 cm)
• Weight Capacity: 700 lbs (318 kg)

The Stryker M Series stretchers set new standards for effective treatment and safe transport. Uniquely mobile and user-friendly, the M Series stretchers are perfectly suited for fast-paced and rigorous environments such as the ER and ICU units. They help in greatly reducing the physical strain on medical personnel without compromising the patient’s care and comfort. This general-purpose stretcher also has a 700 lb (317.5 kg) weight capacity which makes it one of the first stretchers available on the market.

• Dimensions:
  • Overall Length:
    • 1005, 1007, 1015: 84 in (213.4 cm)
    • 1025: 85 in (215 cm)
  • Overall Width:
    • Siderails Up: 33 ½ in (85.1 cm) or 37 in (94 cm)
    • Siderails Down: 30 ¼ in (76.8 cm) or 30 ¾ in (78.1 cm)
  • Height Range:
    • High: 34 in (86.4 cm)
    • Low: 20 ¾ in (52.7 cm)
• Patient Surface: 26 x 75.25 in (66 x 189 cm)
• Weight Capacity: 700 lbs (317.5 kg)

Designed to help caregivers accomplish their goals, the Advanta Series provides patients egress/ingress, less patient positioning, and more convenience through storage amongst other features. It is intended for low to moderate acuity patients in the medical/surgical area of the hospital. The AccuMaz Quantum VPC Surface offers an affordable therapy solution for patients at risk of breakdown. Additionally, the state-of-the-art P500 Therapy Surface not only addresses shear, friction, and pressure but also keeps the patient cool and dry.

• Dimensions:
  • Frame Width: 40 in (101.6 cm)
  • Frame Length (with head/footboard)
    • Normal: 91 in (231 cm)
    • Extended: 87 in (221 cm)
• Weight Capacity: 500 lbs (228 kg)

The Stryker Secure Series retractable bed design keeps patients close to their belongings and allows caregivers to easily operate the bed. Lockout patient controls and a central brake ensure that the Secure Series is safe and in the best position for patients at all times. For versatility in positioning, this bed can be lowered and the back may be angled to seat the patient upright. Patients have control of bed positioning with intuitive side rail control unless the caregiver lockout overrides their ability to change bed positioning.

• Dimensions:
  • High Range: High 30 in (76 cm)
  • High Range: Low 16 in (41 cm)
  • Overall Width:
    • Side Rails Up: 42.5 in (108 cm)
    • Side rails Down: 40 in ( 102 cm)
  • Overall Length: 93 in (236 cm)
  • Patient Surface: 35 x 84 in (89 x 213 cm)
• Max Weight Capacity: 500 lbs (228 kg)

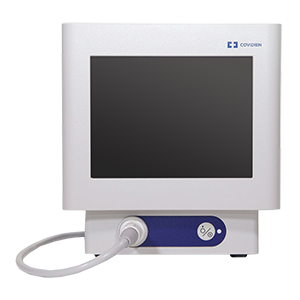

The BIS 4-Channel monitor provides the capability to detect hemispheric differences in the brain, which proves useful for advanced monitoring applications. Delivered in the same compact, portable, plug-and-play design as the BIS 2-Channel, the 4-Channel provides advanced bilateral features including 4 channel EEG monitoring, a color-scaled density spectral array, and the BIS proprietary asymmetry indicator.

• Dimensions (HxWxD): 8 x 7.5 x 5 in (20.3 x 19 x 12.7 cm)
• Display Size: 4 x 5.25 in (10 x 13 cm)
• Weight: 3.5 lbs (1.6 kg)
• BISX Dimensions: 3.75 in (diameter) x 2.5 in (thick) (9.5 x 6.3 cm)
  • Cable Lenth: 9 ft (2.7 m) integral BISX cable
    • 5 ft (1.4 m) BISX to sensor connector
  • Weight: 10 oz (0.284 kg)
• Temperature Range: Operating at 0—40°C (32—104°F)
• Battery: 45 minutes at full operation
  • Rechargeable Time: 6 hours
• Power: 100—240 VAC, 50—60 Hz
  • Power Consumption: 84 W

The Medtronic BIS 2-Channel monitor utilizes state-of-the-art technology to process EEG information and provides a user-configurable display. The BIS technology noninvasively measures and interprets brain wave activity directly related to anesthetic agents. The BIS monitoring technology provides valuable information about patient status to help clinicians address each patient’s unique anesthetic requirements. This BIS technology may help with reducing emergency and recovery time, anesthetic drug use, and the risk of awareness during surgery.

• Dimensions (HxWxD): 8 x 7.5 x 5 in (20.3 x 19 x 12.7 cm)
• Display Size: 4 x 5.25 in (10 x 13 cm)
• Weight: 3.5 lbs (1.6 kg)
• BISX Dimensions: 3.75 (diameter) x 2.5 in (thick) (9.5 x 6.3 cm)
  • Cable Length: 9 ft (2.7 m) integral BISX cable
    • 5 ft (1.4 m) BISX to sensor connector
  • Weight: 10 oz (0.284 kg)
• Temperature Range: Operating at 0—40°C (32—104°F)
• Battery: 45 minutes at full operation
  • Rechargeable Time: 6 hours
• Power: 100—240 VAC, 50—60 Hz
  • Power Consumption: 84 W

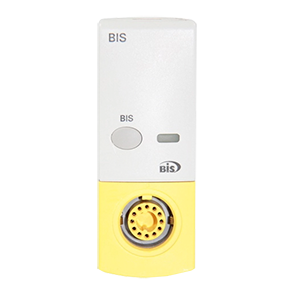

The Philips Bispectral Index (BIS) M1034A uses Aspect Medical Systems XP platform technology. It provides a depth of consciousness and sedation monitoring for use in the OR, ICU, and other clinical settings. A sensor on the patient’s forehead translates brain electoral activity into a single BIS value, ranging from 0 and 100, with 100 signifying full awareness and 0 indicating no brain activity. This BIS module provides additional information for the IntelliVue patient monitor instructions for use.

• Dimensions (HxWxD): 4.4 x 1.4 x 4 in (111 x 36 x 102 mm)
• Weight: 0.7 lbs ( 0.3 kg)

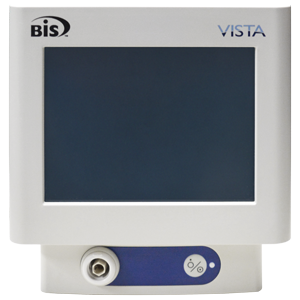

The BIS Vista monitoring system is a user-configurable patient monitoring system designed to monitor the hypnotic state of the brain based on the acquisition and processing of EEG signals. The system performs self-tests to ensure that the monitor and its components are functioning properly and that impedance levels of patient sensors are within acceptable limits. Easy-to-use menus allow the user to change the data display and review stored data.

• Dimensions (HxWxD): 8 x 7.5 x 5 in (20.3 x 19 x 12.7 cm)
• Display Size: 4 x 5.25 in (10 x 13 cm)
• Weight: 4.5 lbs (2 kg)
• BISX Dimensions (HxWxD): 1 x 2.6 x 4.25 in (2.5 x 6.6 x 10.8 cm)
  • Cable Length: 9 ft (2.7 m) integral BISX cable
    • 5 ft (1.4 m) from BISX to sensor connector
  • Weight: 10 oz (0.284 kg)
• Temperature Range: Operating at 0—40°C (32—104°F)
• Battery: 45 minutes at full operation
  • Rechargeable Time: 6 Hours
• Power: 100—240 VAC, 50—60 Hz
  • Power Consumption: 84 W

The Gaymar Medi-Them III helps regulate patient temperature through state-of-the-art microprocessor control. The Medi-Therm III comes with both manual, automatic mode and a microprocessor which helps maintain a precise and accurate reading. Separate heating and cooling reservoirs deliver rapid thermal response for the patient’s need of heat or cooling solution. The rate-controlled warming option allows caregivers to progressively increase temperature and reliably stabilize patient temperature at a selected set point.

• Dimensions (HxWxD): 37 x 14 x 18 ¾ in (94 x 35.6 x 47.6 cm)
• Weight: 141 lbs (64 kg) full
  • 121 lbs (54.9 kg) empty
• Flow: 16 gph (gallons per hour) 60.6 liters/hour
• Temperature Range: Operating at 15.6—32.2°C (60—90°F)
• Power: 120 VAC, 60 Hz, 11.5 amps

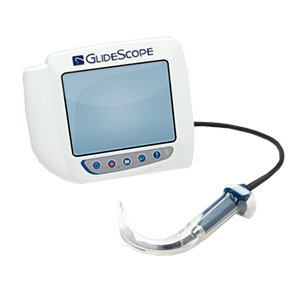

The Verathon Glidescope AVL video laryngoscope delivers the digital video technology and functionality physicians expect from advanced video laryngoscopy. The Glidescope AVL system combines a high-resolution, full-color digital camera with an integrated LED light source and Reveal anti-fog feature. The AVL video batons and Glidescope Direct blade connect directly to a full-color, digital video monitor which allows for real-time easy viewing.

• Dimensions (HxWxD): 6.85 x 8.8 x 3.1 in (17.4 x 22.3 x 8 cm)
• Weight: 2.2 lbs (1 kg)
• Display Size: 6.4 in (16.3 cm) diagonal
  • Screen Type: TFT Color VGA
  • Resolution: 640 x 480 pxi
• Temperature Range: Operating at 10—40°C (50—104°F)
• Battery: Lithium-ion 7.2 V with 90 minute battery life
• Power: 100—240 VAC, 50—60 Hz
  • DC Power Supply: 12 V DC, 2.5 A max

The Physio-Control Lifepak 20e is designed specifically for the hospital market and continues to be at the forefront of improving patient care. The Lifepak 20e defibrillator/monitor offers 360J escalating biphasic energy for both manual and auto defibrillation. Using the data in the Code Summary report, clinical teams can use Code-Stat Data Review Software, to annotate chest compressions onto the patient’s continuous ECG report and calculate CPR statistics. Now you can facilitate quality analysis, helping you drive improvements to resuscitation outcomes.

• Dimensions (HxWxD): 8.4 x 10.3 x 10.3 in (21.3 x 26.2 x 26.2 cm)
• Weight: 12.3 lbs (5.58 kg) with fully featured (SpO2 and door, without paper or cables)
  • Quick Combo cable: 0.43 lbs (0.20 kg)
• Display Size: 3.4 x 4.53 in (86.38 x 115.18 mm)
  • Screen Type: Color Active LCD
  • Resolution: 320 x 240 pxi
• Temperature Range: Operating at 5—40°C (41—104°F)
• Battery: Lithium-ion battery with 110—210 minutes of use
• Power: 90—132 VAC, 50—60 Hz, 198—264 VAC, 50—60 Hz
  • Power Consumption: 120 VA

The Zoll R Series defibrillator is designed with easy-to-use technology to help rescuers provide high-quality CPR and optimal defibrillation and pacing treatments. The R Series features Real CPR Help technology, real-time audio and visual feedback that supports all types of rescuers.

• Dimensions (HxWxD): 8.2 x 10.5 x 12.5 in (20.8 x 26.7 x 31.7 cm)
• Weight: 13.6 lbs (6.17 kg) with OneStep cable and battery pack
  • 2 lbs (6.89 kg) with paddles
• Display Size: 6.5 in (16.5 cm) diagonally
  • Screen Type: High-resolution liquid crystal display LCD
  • Display Format: Nonfade moving bar display
• Temperature Range: Operating at 0—40°C (32—104°F)
• Battery: Rechargeable lithium-ion 10.6 V
  • Rechargeable Time: 4 hours or less within R Series
• Power: 100—120 Vrms 50—60 Hz, 220—240 Vrms 50 Hz
  • Power Consumption: 275 VA

The GE ApexPro CH transmitter sends ECG data to the ApexPro receiver system. The ApexPro CH also can send SpO2 and NIBP data when the interface connector ports are enabled. After sending the data to the ApexPro receiver system, then getting sent through a dedicated ethernet port to the CIC Pro center to easily display the data. The GE ApexPro CH uses 2AA batteries and features 3 buttons that verify the leads, creates a 20-second printable graph strip, and alarm the CIC Pro center.

• Dimensions (HxWxD): 5.4 x 9 x  0.9 in (13.7 x 7.3 x 2.3 cm)
• Weight: 0.37 lbs (170.1 g)
• Battery Type: 2 AA, 15A, 1.5V
• Battery Life: 120 Hours

The GE CARESCAPE Telemetry T14 transmitter is used to send patients’ ECG data to the ApexPro receiver system. Once the data is received by the ApexPro receiver, it gets processed and transmitted through the dedicated ethernet interface to a CIC Pro center for further processing and display. The CARESCAPE T14 features 3 buttons that verify the leads, creates a 20-second printable graph strip, and creates a blue border around the event bed, and sounds an alarm at the CIC Pro center.

• Dimensions (HxWxD): 5.4 x 2.9 x 0.9 in (13.7 x 7.3 x 2.3 cm)
• Weight: 0.37 lbs (170.1 g)
• Battery Type: 2 AA, 15A, 1.5V
  • Battery Life: 65 Hours

The Philips M4841A TRX is a Pocket-sized telemetry transmitting device. With its compact design and use of fewer cords, it makes it easier for the patient to wear and allows them to move around. The Philips telemetry device offers two different options where you can monitor ECG and SpO2 or just monitor ECG readings only. The telemetry system can be used on patients ranging from pediatrics to adults and can be integrated with the Philips IntelleVue information center at your facility.

• Dimensions (HxWxD): 5.6 x 3.52 x 1.48 in (140 x 88 x 37 mm)
• Weight (ECG + SpO2):
  • <324 g (11.5 oz) with 5-Wire Leadset and 2 AA bateries
  • <255 g (9.0 oz) with 2 AA batteries
  • <204 g (7.2 oz) without 2 AA batteries
• Weight (ECG Only)
  • <284 g (10 oz) with 3-Wire Leadset and 2 AA batteries
  • <210 g (7.4 oz) with 2 AA batteries
  • <162 g (5.7 oz) without 2 AA batteries
• Battery Type: 2 AA, 1.5V
• Battery Life: 50 Hours (ECG only), 18.8 Hours (ECG/SpO2 Continuous), between 18.8—50 Hours (ECG/SpO2 Spot Check)

The Philips MX40 telemetry/monitor is easy for clinicians to use and comfortable for patients to wear. Smart, multi-measurement cable systems are available for use with reusable and single-patient use supplies. The MX40 is available in three models (ECG only, ECG, and FAST SpO2 Ready). The MX40 is compatible for use with IntelliVue Patient Monitors and Cableless Measurements via a short-range radio connection.

• Dimensions (HxWxD): 4.99 x 2.75 x 1.24 in (126.8 x 69.9 x 31.5 mm)
• Weight: 8.5 oz (1.4 GHz – 240 g) without batteries
• Display Size: 1.70 x 2.26 in (43.2mm x 57.6 mm) view area
  • Screen Type: 2.8 in QVGA Color LCD
  • Resolution: 240 x 320
• Temperature: Operating at 0—37°C (32—99°F)
• Battery: Lithium-ion battery pack or 3 AA batteries
  • Recharging Time: 6.5 hours

The OxiMax N-600x pulse oximeter provides continuous noninvasive monitoring of functional oxygen saturation of arterial hemoglobin (SpO2) and pulse rate. The N-600X is intended for prescription use only with neonatal, pediatric, and adult patients who are well or poorly perfused in hospitals, hospital-type facilities, intra-hospital transport, and home environments. The OxiMax SPD™ Alert (SPD) feature is intended only for facility-use care of adults to detect patterns of desaturation indicative of repetitive reductions in airflow through the upper airway and into the lungs.

• Dimensions (HxWxD): 3.3 x 10.4 x 6.8 in (8.4 x 26.4 x 17.3 cm)
• Weight: 5.8 lbs (2.6 kg)
• SpO2 Saturation Range: 1—100%
• Temperature: Operating at 5—40°C (41—104°F)
• Battery: Lead-acid 6V DC (recharge 8 hours with oximeter turned off, 12 hours with oximeter turned on)
• Power: Rated at 100—120V AC (nominal 120 VAC) or 220—240V AC (nominal 230 VAC), 30 VA

The Nellcor 595 pulse oximeter is exceptional for performance, even when challenged with patient motion, low perfusion, and weak signal conditions or environmental interference. Its SpO2 monitor utilizes motion artifact compensation technology, used for Neonate and Adult patients. The display of the Nellcor N-595 Finger Pulse Oximeter is a bright blue LCD screen for ease of viewing. Other features include a high-quality LCD screen, one-touch contrast adjustment, interfaces with certain multiparameter monitors, and much more.

• Dimensions (HxWxD): 3.3 x 10.4 x 6.8 in (8.4 x 26.4 x 17.3 cm)
• Weight: 5.8 lbs (2.6 kg)
• SpO2 Saturation Range: 1—100%
• Temperature: Operating at 5—40°C (41—104°F)
• Battery: Sealed lead-acid internal battery (minimum of 2 hours with new battery fully charged)
• Power: 100—120 VAC, 200—240 VAC, 50—60 Hz, 20 VA

The Radical-7 noninvasive monitor measures arterial oxygen saturation (SpO2) pulse rate, and perfusion index (PI), along with optional measurements of SpHb, SpCO, SpMet, SpOC, PVI, and RRa. The Radical 7 can be used as either a Handheld or a Standalone monitor. The Radical 7 provides graphical displays for plethysmographic waveform, respiratory waveforms, Signal Identification, and Quality Indicator (Signal IQ). The Rad-7 can also be used to interface with a multi-parameter patient monitor to send Masimo SET pulse oximetry information to that monitor for display.

• Dimensions Handheld (HxWxD): 8.9 x 3.5 x 2.1 in (22.6 x 8.9 x 5.3 cm)
• Weight: 1.2 lbs (0.54 kg)
• Dimensions Standalone (HxWxD): 3.5 x 10.5 x 7.7 in (8.9 x 26.7 x 19.6 cm)
• Weight: 3.8 lbs (1.73 kg)
• Display: 480 dots x 272 dots
• SpO2 Saturation Range: 0—100%
• Temperature: Operating at 5—40°C (41—104°F)
• Battery: Lithium-ion with 4 hour capacity
• Power: 100—240 VAC, 47—63 Hz, 55 VA

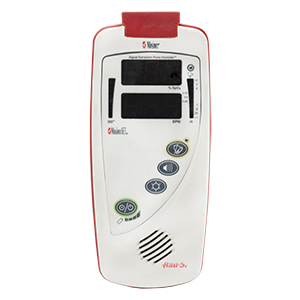

The Masimo Rad-5V pulse oximeter features plenty of specifications that allow for better and more accurate readings. The FastStart allows for rapid measurement at startup and the Signal I.Q. bar will identify the signal and quality during motion and low signal-to-noise situations. The Perfusion Index (PI) indicates arterial pulse signal strength, with a high green bar signifying good quality while a low red bar means the PI is poor. The Masimo Rad-5 can hold up to 72 hours of tending data in the memory.

• Dimensions (HxWxD): 6.2 x 3.0 x 1.4 in (15.8 x 7.6 x 3.6 cm)
• Weight: 13 oz (0.32 kg)
• Data Display: % SpO2, pulse rate, perfusion index, alarm status, alarm silenced status, Signal IQ/pleth bar, battery status
  • Type: LED
• SpO2 Saturation Range: 1—100%
• Temperature: Operating at 0—50°C (32—122°F)
• Battery: 4 AA Alkaline with a capacity of over 30 hours

Incorporates the latest digital signal processing and cardiac-based technology for accurate, reliable readings. The modular software, expandable parameters, and easy upgrades help ensure long-term functionality.

• Dimensions (HxWxD): 6.5 X 10 X 5 in (165 x 254 x 127 mm)
• Weight: 7.5 lbs (3.4 kg)
• SpO2 Saturdation Range: 1—100%
• Temperature Range: Operating at 5—40°C (41—104°F)
• Battery: Lithium-ion, 7.2 V DC, 11.6 Ah, 83 Wh
  • Battery Life: 6 hours of battery life
• Power: 80—263 V AC (nominal 120—230 VAC), 30 VA

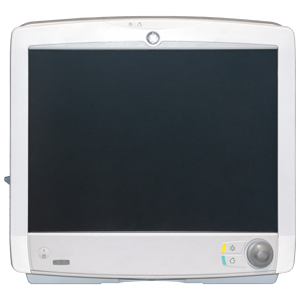

The Carescape B650 provides intuitive algorithms for accurate diagnosis, including GE EKPro, GE Dinamap non-invasive blood pressure, and 12 SL diagnostic ECGs with direct 2-day MUSE communications. The B650 has various parameters that can help assess the aptitude of anesthesia in the OR and give an understanding of the patients’ readiness for ventilator weaning. Additionally, the compact, flexibility of this monitor allows for the user to control the views, from 8 to 14 waveforms, allowing for customization, based on caregivers’ and patients’ needs.

• Dimensions (HxWxD): 14.2 x 14.6 x 8.67 in (36 x 37 x 22 cm)
• Weight: 21.6 lbs (9.8 kg)
  • Carescape Patient Data Module: 2.4—2.9 lbs (1.1—1.3 kg)
  • E-modules: 0.6—3.5 lbs (0.3—1.6 kg)
• Display Size: 15” (38 cm)
  • Screen Type: Active matrix color TFT LCD
  • Resolution: 1024 x 768 pixels (XGA)
• Temperature Range: Operating at 10—40°C (50—104°F)
• Battery: Exchangeable Lithium-ion, 11.1 V (nominal)
  • Battery Life: 150 cycles to 80% capacity
• Power: 100—240 VAC ±10%, 50—60 Hz (universal input voltage range)
  • Power Consumption: <140 W

The Carescape B450 monitor works with the Carescape One monitor or Carescape Patient Data Module (PDM) and one additional e-module, giving you the power to monitor patients with diverse acuities. Whether using LAN or leveraging Wi-FI during transport, the monitor provides continuous patient data to your central station and integration to your EMR system. This monitor features dedicated software packages for operating room, post-anesthesia, intensive care, neonatal, and emergency department care units.

• Dimensions (HxWxD): 11.4 x 11.9 x 6.2 in (29 x 30 x 16 cm)
• Weight: 11 lbs (5 kg) with all options and battery, without modules
• Display Size: 12” (30.48 cm)
  • Screen Type: Active matrix color TFT LCD
  • Resolution: 1024 x 768 pixel (XGA)
• Temperature Range: Operating at 10—40°C (50—104°F)
• Battery: Exchangeable Lithium-ion, 10.8 V (nominal)
  • Battery Life: 300 cycles to 60% capacity
• Power: 100—240 VAC ±10%, 50—60 Hz (universal input voltage range)
  • Power Consumption: <200 W

The GE Dash 5000 Multiparameter Monitor is a portable monitoring system that is flexible and easy to use. The GE 5000 is designed for integration into commonly utilized existing wireless networks, helping you leverage your investment in your current IT infrastructure. Advanced clinical parameters including 12SL for simultaneous ECG monitoring, GE EK-Pro for multi-lead arrhythmia analysis, ICG, mainstream, and sidestream CO2, and GE DINAMAP NIBP with Super STAT.

• Dimensions (HxWxD): 11.3 x 12.2 x 9.4 in (28.7 x 30.7 x 23.9 cm)
• Weight: 14 lbs (6.4 kg)
• Display Size: 12.1” (307.34 mm)
  • Screen Type: Active-matrix color LCD
  • Resolution: 800 x 600 dpi
• Temperature Range: Operating at 0—45° C (32—113° F)
• Battery: Exchangeable Lithium-ion, 11.1 V (nominal)
  • Battery Life: 500 cycles to 50% capacity
• Power: 90—132 VAC 50—60 Hz 2.0A, 190—264 VAC, 50—60 Hz 1.0A
  • Power Consumption: 75 W (fully loaded)

The GE Dash 4000 Multiparameter Monitor is amongst the most advanced configured monitors available for clinicians who want to improve the quality of their care. Dash monitors feature gold standard Marquette ECG, DINAMAP, NIBP, Masimo SET Pulse Oximetry, and other leading patient-safety enhancements in a rugged, ergonomic design light and durable enough to handle even air transport.

• Dimensions (HxWxD): 10.8 x 11.5 x 9.6 in (27.4 x 29.3 x 24.3 cm)
• Weight: 12.2 lbs (5.5 kg)
• Display Size: 10.24” (26 cm) diagonal
  • Screen Type: Active-matrix color TFT
  • Resolution: 640 x 480 dpi
• Temperature Range: Operating at 0—45°C (32—113°F)
• Battery: Lithium-ion, 11.1 V (nominal)
• Power: 90—132 VAC 50—60 Hz 2.0A, 190—264 VAC 50—60 Hz 1.0A
  • Power Consumption: 75 W (fully loaded)

The IntelliVue MX550 pairs powerful bedside monitoring with the reassurance of a battery backup. Supplying comprehensive patient information at a glance can make a real difference when multiple patients and priorities need attention. The MX550 also has built-in Advanced Clinical Solutions that provide tools to summarize and visualize complex clinical data and ambient light adjustments for readability in any environment.

• Cardiac Output Module (HxWxD): 4.1 x 1.4 x 4.3 in (104.14 x 36 x 109.22 mm)
• Weight: 225g (7.9 oz)
• Spirometry Modeule (HxWxD): 4.1 x 1.4 x 4.3 in (104.14 x 36 x 109.22 mm)
• Weight: 250g (8.8 oz)
• SpO2 Module (HxWxD): 4.1 x 1.4 x 4.3 in (104.14 x 36 x 109.22 mm)
• Weight: 200g (<8.8 oz)
• Display Size: 15” (38.1 cm) diagonal
  • Screen Type: Active-matrix color LCD TFT display
  • Resolution: 1280 x 768 dpi
• Temperature Range: Operating at 0—40°C (32—100°F)
• Battery: M4605A, 10.8 V 6000 mAh Lithium-ion
• Power: <70 W, 100—240 V ~ (line voltage), 1.2—0.5 A (current), 50—60 Hz
  • Power Consumption: <70 W (average)

The Philips IntelliVue MP50 enhanced user interface offers quick visibility of patient data, is easy to use, and is compatible with standard software. Many functions are accessible through simple one-touch commands of the touchscreen feature. Additionally, each NBP measurement generates a column in the vital signs trend table. Measurements for other values are added to provide an enhanced overview of patient status. Furthermore, this Intellivue is compatible with a range of SpO2 technologies and sensors from Philips, Masimo, and Nellcor.

• Dimensions (HxWxD): 12.99 x 14.37 x 8.54 in (33 x 36.5 x 21.7 cm)
• Weight: 14.8 lbs (8.6 kg)
• Display Size: 12.1″ (30.73 cm) diagonal
  • Screen Type: Active-matrix color LCD TFT display
  • Resolution: 800 x 600 dpi
• Temperature Range: Operating at 0—35°C (32—95°F)
• Battery: M4605A, 10.8 V 6000 mAh Lithium-ion
• Power: <100 W, 100—240 V ~ (line voltage), 1.6—0.7 A (current), 50—60 Hz
  • Power Consumption: <100 W

The Precision Flow Plus unit is designed to blend and meter oxygen and air to set flow rates and oxygen percentages, to warm and humidify that flow, and then deliver it to the patient. Two separate pathways, one for the breathing gas and the other for the water, intersect when fibers of a special membrane material allow water vapor to pass from the outside of the fiber into the gas stream. A second unique feature of the Precision Flow is the heated vapor delivery tube.

• Dimensions (HxWxD): 11.5 x 8 x 7 in (300 x 200 x 180 mm) excluding IV pole clamp and gas filters
• Weight: 10.6lb (4.81Kg) without disposable patient circuit
• Circulating Water Volume: 400 ml approx. including delivery tube and cartridge.
• Fuses: (Qty 2) GMA 3A F250 V 5mm x 20mm
• Flow Rate Resolution: Low Flow Range: 1-8 L/min, Low Flow Resolution; 0.5 L/min, High
  • Flow Range: 5 – 40 L/min, High Flow Resolution: 10.0L/min
• Power: 100—240 VAC, 50—60 Hz, approx. 200VA (<350 VA) during warm-up, approx.
  • 80 VA in steady-state (depends on flow rate and temperature)

The Airvo 2 humidification system delivers airway hydration and respiratory support with a design that focuses on comfort and ease of use. It was designed specifically to be an integrated solution for delivering nasal high flow with Optiflow. The humification technology allows the Airvo 2 to deliver high flows of air/oxygen mixtures to spontaneously breathing patients, through the Optiflow nasal cannula or tracheostomy interfaces. Three temperature settings (37, 34, 31°C) to help achieve comfort and compliance.

• Dimensions (HxWxD): 11.6 x 6.7 x 6.9 in (29.5 x 17 x 17.5 cm)
• Weight: 4.8 lbs (2.2 kg) unit only
• Humidity Performance: >33 mg/L at 37°C target, >10 mg/L at 34°C target, >10 mg/L at 31°C target
• Oxygen Analyzer Accuracy: < ± 4% (within the range 25-95% O2)
• Temperature Range: Operating at 18—28°C (64—82°F)
• Power: 100-115 V, 22 A (2.4 A max) , 220—240 V 1.8 A (2.0 A max), 50—60 Hz

The Alaris 8015 PCU (Point-of-Care Unit) is the central core component of the popular Alaris System from Carefusion. It provides a common user interface for programming the various infusion and monitoring modules, which aids in reducing the complexity at the point of care. The Alaris 8015 is intended for adult, pediatric and neonatal care in the hospital and healthcare facility. Additionally, the PCU helps optimize infusion therapy and patient care by using the Guardrails software to measure IV formula data.

• Dimensions (HxWxD): 8.8 x 6.9 x 9 in (22.4 x 17.5 x 22.9 cm)
• Weight: 7.2 lbs (3.2 kg)
• Mode of Operation: Continuous
• Fluid Ingress Protection: IPX1, Drip Proof
• Temperature Range: Operating at 5—40°C (41—104°F)
• Battery: 12 V, 4000 mAh nickel-metal hydride battery
  • Battery run time is a function of the number of modules attached and module activity.
• Power: 100—2400~, 50—60 Hz, 150 VA Max

The Alaris 8100 provides excellent patient care as a lightweight, large volume pumping module that is easily attached to the Alaris 8015 PCU unit. This infusion pump module has dose rate calculations and many other advanced features. The 8100 is intended for delivery of fluids, medications, blood, and blood products using continuous or intermittent delivery through clinically acceptable routes of administration; such as, intravenous (IV), intra-arterial (IA), subcutaneous, epidural, or irrigation of fluid spaces.

• Dimensions (HxWxD): 8 x 5.5 x 3.3 in (20.32 x 13.97 x 8.38 cm)
• Weight: 2.5 lbs (1.13 kg)
• Flow Rate: 0.1—99.9 mL/hour in 0.01 mL increments
  • 10—99.9 mL/hour in 0.1 mL increments
  • 100-999 mL/hour in 1 mL increments
• Temperature Range: Operating at 5—40°C (41—104°F)

The Alaris 8110 is a syringe module designed to work with the Alaris PCU unit and the Alaris system. The 8110 combines precision instrumentation with advanced software to help ensure the right dose rate. This syringe pump module uses a pressure sensing disc which shortens the time to alarm and reduces the delay upon infusion startup. Additionally, it uses standard, single-use disposable syringes (with Luer-lock connectors) and administration sets, designed for use on syringe pumps.

• Dimensions (HxWxD): 15 x 4.5 x 7.5 in (38 x 11.43 x 19.1 cm)
• Weight: 4.5 lbs (2.04 kg)
• Flow Rate: 0.01—9.99 mL/hour in 0.01 mL increments
  • 10—99.9 mL/hour in 0.1 mL increments
  • 100—999 mL/hour in 1 mL increments
• Temperature Range: Operating at 5—40°C (41—104°F)

The Alaris BD 8120 pump module is used for the delivery of pain management medications via patient-controlled dosing. The Alaris 8120 is designed to work with the Alaris PC unit as well as with other Alaris systems. This module uses non-dedicated standard or pre-filled, single-use, disposable syringes and administration sets with anti-siphon valves, designed for use on syringe-type PCA pumps.

• Dimensions (HxWxD): 15 x 4.5 x 7.5 in (38 x 11.43 x 19.1 cm)
• Weight: 5.5 lbs (2.49 kg)
• Flow Rate: 0.10—9.99 mL/hour in 0.01 mL increments
  • 10—99.9 mL/hour in 0.1 mL increments
  • 100—999 mL/hour in 1.0 mL increments
• Temperature Range: Operating at 5—40°C (41—104°F)

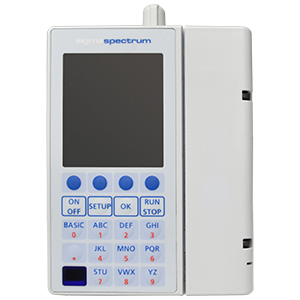

The Signa Spectrum promotes guaranteed patient safety with its defining feature: the drug library. The Sigma Spectrum Infusion System’s high drug library compliance with its Dose Error Reduction Software (DERS), identifies potential harm through infusion medication programming errors before administration. This feature will significantly decrease any unnecessary risk for patients during an infusion. The lightweight device can be transported anywhere in a facility and used in a variety of healthcare settings.

• Dimensions (HxWxD): 5.8 x 4.2 x 2.5 in (14.7 x 10.6 x 6.35 cm) without IV pole clamp
  • 8 x 6.4 x 4.7 in (14.7 x 16.25 x 11.93 cm) with IV pole clamp
• Weight: 0.722 kg (25.5 oz ±0 oz) without IV pole clamp
  • 949 kg (33.5 ± 1.0 oz) with IV pole clamp
• Screen Type: Color LCD
• Mode of Operation: Continuous, Multi-Step, Cyclic TPN, and Amount/Time
• Flow Rate: 0.5—999 mL/hour in 0.1 mL increments
  • 5—99.9 mL/hour in 1.0 mL increments
  • 100—999 mL/hour
• Temperature Range: Operating at 15.6—32.2°C (60—90°F)
• Battery: Lithium-ion, 7.4 VDC (nominal)
  • Recharging Time: 12 hours
• Power: 115 VAC ± 15%, 50—60 Hz / 300 mA Max

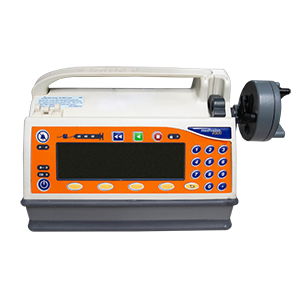

The Medfusion 4000 syringe infusion pump is an intuitive syringe pump system. It is recognized for its accurate medication delivery in ICU, including neonatal and pediatric intensive care, and the operating room. The easy-to-use system supports confident and safe medication delivery for better patient outcomes in both neonatal and adult critical care units.

• Dimensions (HxWxD): 6.2 x 10.5 x 5.7 in (16 x 27 x 14.5 cm)
• Weight: 4.54 lbs (2.04 kg)
• Flow Rate: 0.01—1130 mL/hour in increments of 0.01/0.1 mL/hr
• Temperature Range: Operating at 5–40°C (40—104°F)
• Battery: Rechargeable Lithium-ion, 10 hours typical at 5.0 mL/hr with 60 mL syringe (from fully charged battery)
• Power: 100—240 VAC, 50—60 Hz, 42 VA

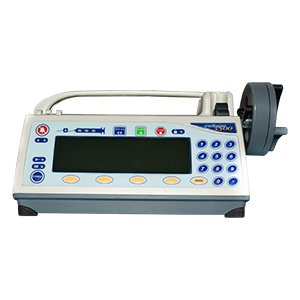

The Medfusion 3500 syringe infusion pump is chosen by the top pediatric and general hospitals for arterial, epidural, enteral, intravenous, spinal, and subcutaneous medication delivery. Medfusion syringe pumps automatically detect syringe sizes from 1mL to 60 mL including intravenous and enteral syringe tubes. The Flow Sentry occlusion detection offers adjustable sensitivity and alerts the clinician quickly in the event of an occlusion. This unit is ergonomic, easy-to-use, horizontal design protects the entire syringe barrel and allows single-handed loading.

• Dimensions (HxWxD): 5.1 x 10.5 x 5.5 in (13 x 27 x 14 cm)
• Weight: 3.8 lbs (1.7 kg) pump only
• Flow Rate: 0.01—1130 mL/hour (dependent upon syringe size)
• Temperature Range: Operating at 5—40°C (40–104°F)
• Battery: Rechargeable Lithium-ion, 10 hours at 5.0 mL/hr with 60 mL syringe (from fully charged battery)
• Power: 100—240 VAC, 50—60 Hz, 30VA

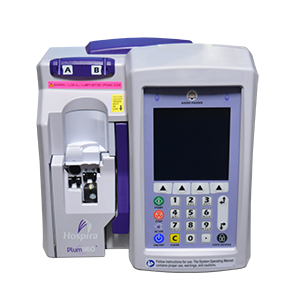

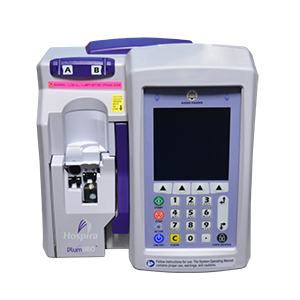

The Hospira Plum 360 is a dependable IV pump that has proven to reduce medication errors and increase patient safety. The infusion device boasts industry-leading cybersecurity and complete IV-HER interoperability. The Plum 360 includes the uniquely designed PlumSet cassette allowing for automated back-priming. This cassette is easily removed from the line without disconnecting from the patient to maintain a closed system. The device also includes a secondary line that connects directly to the cassette, eliminating the need to raise or lower infusion containers.

• Dimensions (HxWxD): 8 x 8 x 6 in (20.3 x 20.3 x 15.2 cm)
• Weight: 9.92 lbs (4.5 kg)
• Flow Rate: 0.1—999 mL/hour
• Temperature Range: 5—40°C (41—104°F)
• Battery: One sealed, lead-acid, rechargeable 6 V
  • Battery life approx. 8 hours at 125 mL/hr on a single line
• Power: 100—120 VAC, 50—60 Hz, 50 VA
  • 220—240 VAC, 50—60 Hz, 50 VA

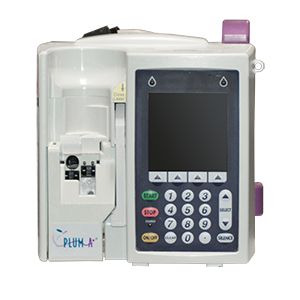

The Hospira Plum A Plus is a cassette-based infusion system that can perform a variety of infusion therapy modes. This Hospira pump can be used in a variety of care scenarios. The Plum A Plus is one of the Hospira IV pumps that has proven to be reliable and economically valuable to many healthcare facilities. With multiple therapy modes, the Hospira Plum A Plus is used for a variety of patients.

• Dimensions (HxWxD): 8 x 8 x 6 in (20.32 x 20.32 x 15.24 cm)
• Weight: 9.5 lbs (4.30 kg)
• Flow Rate: 0.1—99.9 mL in 0.1 mL increments
  • 100—9999 mL in 1 mL increments
• Temperature Range: 5—40°C (41—104°F)
• Battery: One sealed, lead-acid, rechargeable 6 V
• Power: 120 V~, 50—60 Hz, 35 VA

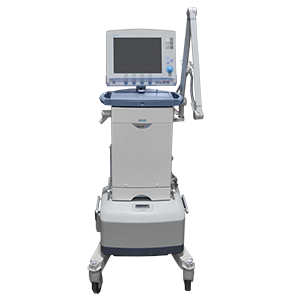

The SERVO-i respiratory ventilator platform can easily be adjusted to meet the needs of neonatal, pediatric, and adult patients. Four configurations are available: SERVO-i Infant, SERVO-i Adult, and two editions of SERVO-i Universal. Additionally, the Servo-i supports both invasive and non-invasive ventilation. Ease of training, operation, and maintenance, as well as flexibility and modularity, ensures a low life cycle cost. There is no need to invest in multiple types of ventilators for different patient categories and situations.

• Dimensions (HxWxD): 51.8 x 22 x 25.2 in (131.5 x 56 x 64 cm)
• Weight: 44.1 lbs (20 kg)
• Modes: VC, PC, CPAP/BIPAP, PS, PRVC, VS, SIMV, NIV, BV, Nasal CPAP, Automode
• Temperature Range: Operating at 10—40°C (50—104°F)
• Battery: Rechargeable, 12 V, 3.5 Ah each
• Power: 100—120 V: 2 A, 190 VA, 140 W
  • 220—240 V: 1 A, 190 VA, 140 W

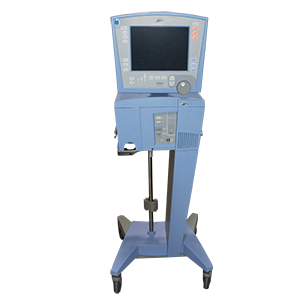

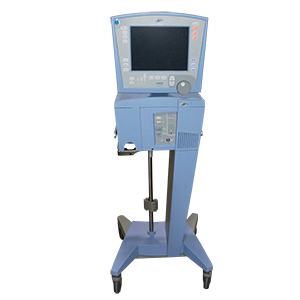

The Vyaire CareFusion Avea is a versatile critical care ventilator for neonatal, pediatric, and adult patients featuring both invasive and non-invasive applications, including infant nasal IMV. Integrated BiCore advanced pulmonary monitoring, Heliox administration, and Volumetric Capnography give you the tools to improve your clinical outcomes. Overall, the Avea ventilator system has a combination of features, applications, and advanced monitoring capabilities that meet your most demanding critical care ventilation needs.

• Dimensions (HxWxD): Pneumatic Module: 10.5 x 16.75 x 16 in (26.7 x 42.54 x 40.64 cm)
  • User interface Module (HxWxD): 13.75 x 16.25 x 2.5 in (35 x 41.3 x 6.4 cm)
• Weight: Ventilator w/ UIM no compressor <73 lbs, (33.1 kg)
• Modes: A/C, SIMV, CPAP/PSV, NPPV, Nasal CPAP/IMV
• Temperature Range: Operating at 5—40°C (41—104°F)
• Battery: 1 hr on internal battery or 30 minutes ventilator and compressor
  • 4 hr on external battery or 2 hr ventilator and compressor

The Covidien Puritan Bennett 980 can be used for intra-hospital transport to provide continuous ventilation support with oxygen and compressed medical air from an internal air compressor or external air source. This ventilator has many technological features that make it one of our best-selling units. Innovative breathing technology accompanied by a simple, easy-to-use touchscreen interface and an expiratory filtration system. This unit comes on four casters that make it easily accessible and transportable between patient rooms.

• Dimensions (HxWxD): 58 x 12.5 x 11.5 in (147 x 31.75 x 29.21 cm)
• Weight: 113 lbs (51.26 kg)
• Modes: A/C, SIMV, SPONT, BiLevel, CPAP
• Temperature Range: Operating at 10—40°C (50—104°F)
• Battery: Rechargeable lithium-ion one-hour battery
• Power: 100 V ~, 50—60 Hz, 2.25 A , 120 V ~, 50—60 Hz, 1.5 A
  • 220—240 V ~, 50—60 Hz, 0.75 A

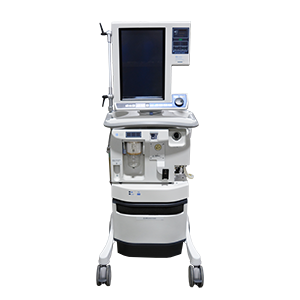

The Covidien Puritan Bennett 840 ventilator provides a solid foundation on which to build your ideal ventilation solution. With the addition of optional advanced technology upgrades, the Puritan Bennett 840 can meet the specific needs of practically every patient type. Data integration helps to support communication with all major patient monitoring and already integrated hospital information systems with an electronic transfer of data. Overall, this piece of equipment is reliable, durable, and easy to service.

• Dimensions (HxWxD): 56 x 28.5 x 29.5 in (142.24 x 72.39 x 74.93 cm)
• Weight: 162.7 lbs (73.8 kg)
• Modes: A/C, SIMV, SPONT, BiLevel
• Temperature Range: Operating at 10—40°C (50—104°F)
• Battery: A new, fully charged 1-hour BPS can operate the ventilator for at least an hour.
• Power: 200V AC, 50Hz; 5A (operation with compressor and Fisher Paykel humidifier)
  • 200V AC, 50Hz; 2.2A (without compressor and Fisher Paykel humidifier)

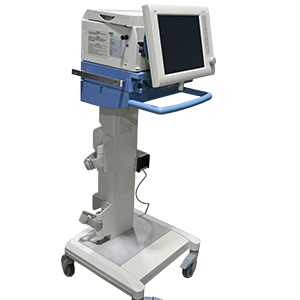

The Drager Evita XL is designed to deliver a comprehensive array of both controlled and assisted ventilation modes. The Evita XL combines a broad range of performance capabilities with many advanced application functionalities, providing outstanding ventilation therapy and easy-to-use operations. This ventilator offers mask ventilation with NIV plus, which reduces the need for intubation. The Evita XL helps caregivers find optimal ventilation settings, supports the weaning process, and improves caregivers’ workflow.

• Dimensions (HxWxD): 12.4 x 20.9 x 17.7 in (31.5 x 53.08 x 45 cm)
• Weight: 64 lbs (50 kg)
• Modes: IPPV, SIMV, MMV, BIPAP, APRV, CPAP, ILV, PPS
• Temperature Range: Operating at 10—40°C (50–104°F)
• Power: 100—240 V, 50—60 Hz, 10—30 V DC

The Drager Evita Infinity V500 is used to provide acute care respiratory support for adults, pediatric and infant use. This ventilator is known for being highly advanced with its ventilation and monitoring capabilities. No need to worry about patient-interfaced leakage as it monitors it closely and adjusts accordingly. The monitoring screen comes with an omnidirectional alarm bar, that can be seen from any point in the patient’s room.

• Dimensions (HxWxD): 12.6 x 14.3 x 16.1 in (32 x 36.32 x 41 cm)
• Weight: 55.1 lbs (25 cm)
• Modes: VC-CMV, VC-SIMV, VC-AC, VC-MMV (volume-controlled ventilation)
  • PC-CMV, PC-SIMV/SIMV+, PC-AC, PC-APRV, PC-PSV (pressure controlled ventilation)
  • SPN-CPAP/PS, SPN-CPAP/VS, SPN-CPAP, SPN-PPS (support of spontaneous breathing)
• Temperature Range: Operating at 10—40°C (50—104°F)
• Power: 100—240 V, 50—60 Hz

The Respironics V60 ventilator combines Respironics’ ventilation expertise with Philips’ to focus on simplifying advanced health care. The V60 ventilator is a microprocessor-controlled, bilevel positive airway pressure (BiPAP) system that provides noninvasive ventilation (NPPV) and invasive ventilatory support for spontaneously breathing adult and pediatric patients. By providing auto-adaptive leak compensation, inspiratory triggering, and expiratory cycling, the Auto-Trak technology delivers optimal synchrony in the face of changing patient demand.

• Dimensions (HxWxD): 13.3 x 15.5 x 16.5 in (33.7 x 39.4 x 42.9 cm)
• Weight (With optional battery): 25.7 lbs (11.7 kg)
  • Weight (Without battery): 23.3 lbs (10.6 kg)
• Modes: CPAP, S/T, PCV, AVAPS
• Temperature Range: Operating at 5—40°C (41—104°F)
• Battery: 14.4V, 10.0 Ah, 163 Wh
• Power: AC voltage 100—240 VAC, 50—60 Hz

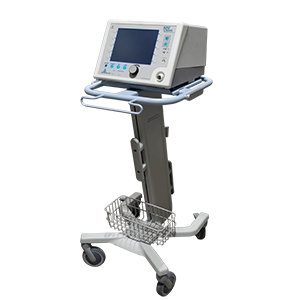

The Respironics BIPAP Vision is a microprocessor-controlled, positive pressure ventilatory assist system. The BIPAP Vision user interface includes multi-function keys, real-time graphic display, and integral patient and system alarms. The BIPAP Vision features a centrifugal blower to generate airflow an internal oxygen module, allowing single or combined gas therapy. Integrated safety and self-diagnostic features check all system functions at start-up and during operation. Visual and/or audible indicators report any errors.

Dimensions (HxWxD): 10-5/8 x 14-3/8 x 16 in (27 x 36.5 x 40.6 cm)

• Weight: 34 lbs (15.4 kg)
• Modes: CPAP, S/T, PAV/T
• Temperature Range: 4.4—40°C (39.92—104°F)
• Battery: Nickel cadmium (NICAD), 3.6 VDC, 110 mAh, rechargeable (alarm battery)
  • Lithium Cell, 2.8 VDC, 49 mAh (data retention battery)
• Power: 100 / 120 / 230 / 240 VAC single phase ± 10%
  • Fuses: 100—120 VAC ~ T 4.0 A, 5 x 20 mm
    • 115 VAC ~ T 3.0 A, 250 V, ¼ x 1 ¼ in
    • 220/230/240 VAC ~ T 1.6 A, 250 V, 5 x 20 mm

Soma stocks a wide variety of spare parts for all equipment that we sell. We have many spare ventilator parts in our in-house parts department. you can find our large listing of ventilator spare parts. Common spare parts that are purchased for ventilators include leak detectors, power supply modules, cable service kits, pressure switches, driver tubes, and many more!
